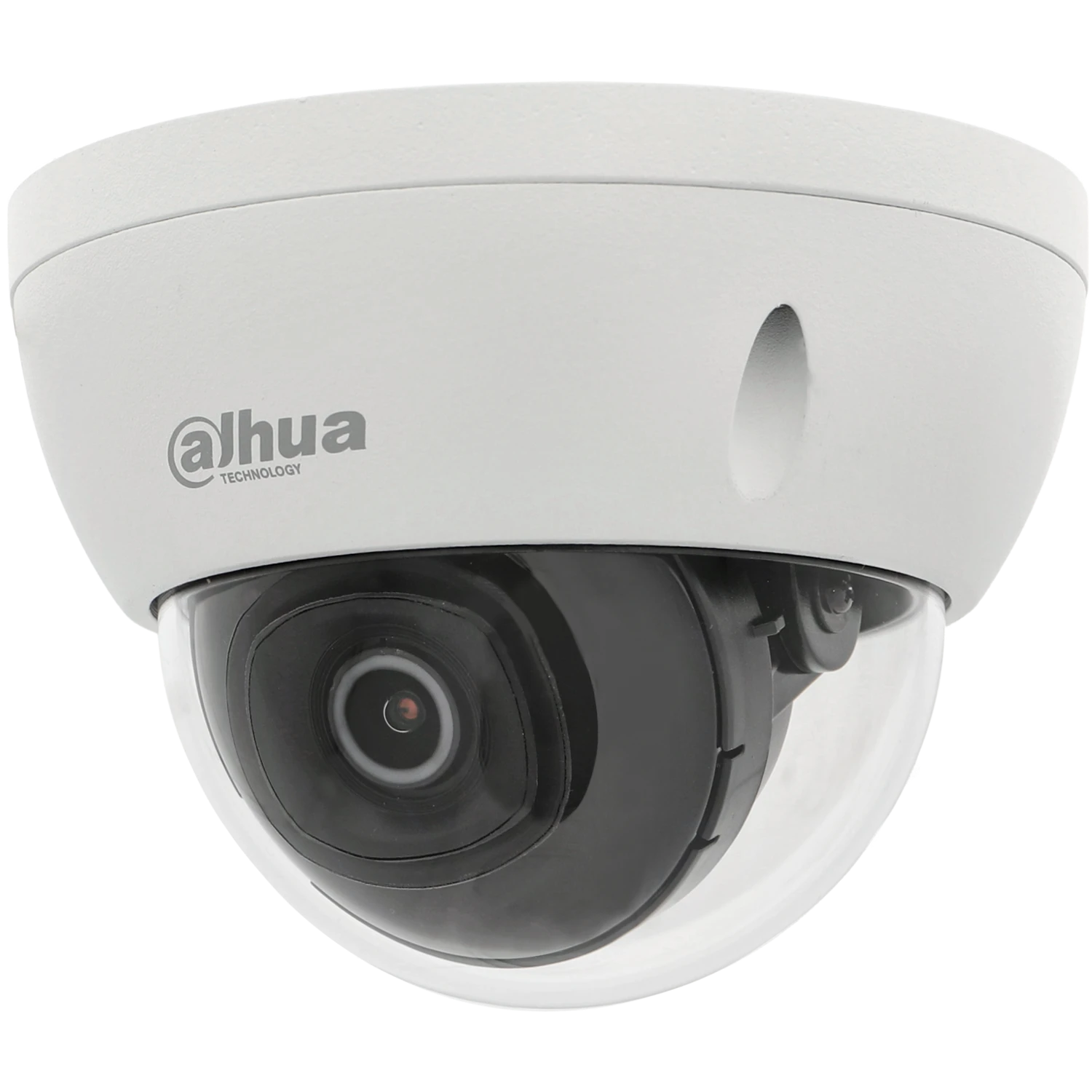

Minidome ip camera of 5 megapixels and fix lens
IPC-HDBW2541E-S-S2
specifications and features
General information
| Serie | Wiz Sense |
| Technology | IP |
| Type of camera | Minidome |
| Sensor | CMOS ® |
| Resolución sensor | 2960 x 1668 |
| Sensor Size | 1/2.7' |
| Electronic shutter speed | 1/3 ~ 1/100000s |
| Minimum lighting | Color: 0.007Lux / B/W: 0.0007Lux |
| Ratio S / N | More than 56dB |
Night vision
| Night vision distance | 30 m |
| Type of night vision | IR |
| Number of LEDs | 3 |
| IR ON/Off | Automatic / Manual |
| Starlight | Yes |
Lens
| Lens Type | Fix |
| Focal distance | 2.8 mm |
| Maximum diaphragm opening | F/1.6 |
| Angle of View | 111º |
| Minimum focus distance | 1100mA |
DISTANCE DORI
| Detect | 64 m |
| Observe | 25 m |
| Recognize | 13 m |
| Identify | 6 m |
Axes
| Motion | 3-Axis |
Video (Cameras)
| Resolución vídeo | 5 Megapixels |
| BLC | Yes |
| HLC | Yes |
| 3D-NR | Yes |
| AGC | Yes |
| AWB | Yes |
| WDR | WDR (120 dB) |
| Images per second | 20fps |
| Video output | RJ45 |
| Day / night mode | Colour |
| Privacy mask | Up to 4 zones |
| Type of Codex | CBR / VBR |
| Bit rate | H.264: 32Kbps ~ 8192Kbps / H.265: 12Kbps ~ 8192Kbps |
| Compression | H.265 / H.264 |
| Main stream | 5Mpx (1 ~ 20fps) / 4Mpx (1 ~ 25fps) |
| Sub stream | 704 × 576 |
| Watermark | Yes |
| Mirror | On / Off |
AUDIO(CAMERAS)
| Built in microphone | Yes |
| Audio compression | G.711A / G.711U / G.726 / PCM |
Power consumption
| Power mode | DC |
| Voltage | 12V |
| Consumption (w) | 5W |
| Amperage | 420mA |
| PoE power | Yes |
| Type PoE | PoE 802.3af |
Ambient
| Operating temperature | -40 ºC ~ 60 ºC |
| Degree of protection | IP67 |
| Anti vandal | IK10 |
| Use | Indoor-outdoor |
| Maximum humidity | 95% |
Material and dimensions
| Dimensions | 81 x 110 (Ø) mm |
| Material | Metal |
| Net weight | 340 g |
| Weight with packaging | 490 g |
| Color | White |
Network features
| IP connection | 1 RJ45 (10M / 100M) |
| ONVIF | Yes, type S , G and T |
| Maximum number of users | 20 users |
| Web browser | Explorer / Chrome / Firefox |
| Management software | Smart PSS Lite / DSS / DMSS |
| Mobile devices | Android / IOS (Apple) |
| Network disconnection | Yes |
| Conflict of IP addresses | Yes |
| Cybersecurity | Yes |
Video analysis
| Tipo de deteccion | Analytical with human/vehicle classification in line/area crossing |
| Crossing line | Yes |
| Intrusion | Yes |
| Motion detection | Yes (4 areas) |
| Audio detection | Yes |
| Video Tamper | Sí |
| Classification Human / vehicle | Sí |
| SMD PLUS | Yes |
Storage
| MicroSD-Card | Up to 256Gb |
| Storage Systems | NAS / FTP / SFTP / Micro SD |
| Storage anomaly | Yes |
System (Cameras)
| Ram memory | 256 MB |
| ROM memory | 128 MB |
